Mini Oil Press

YZS-68 mini oil press is mini-type equipment which is widely used in crushing vegetable oil seeds. This mini oil press has advantage of simple design, easy to operate and low maintenance. At the same time it can be designed into C series and A series.

Specification of Mini Oil Press YZS-68

  • Capacity:0.8-1T per 24Hours
  • Power:3-Phase 5.5kW & 8HP-1440rpm
  • Size:880 x 440 x 765mm
  • Weight:140kgMukhtar
Raw Material Capacity (kg/hr) Output Rate (%) Output Efficiency
Cotton seeds 50-60 12-14 65-72
Soy bean 28-37 10-16 61-65
Peanut kernel 45-60 35-45 91-92
Rape seeds 45-60 30-38 82-85

Features of Mini Oil Press YZS-68

* Cast iron machine base;
* Special gear box structure make the rotating speed averagely;
* Main parts of chamber through the processing of high-temperature tempering and low temperature quenching;
* Cake thickness can be adjusted once the machine stop running;
* Superior grade oil cake;
* Compact structure, stable function, simple maintenance.

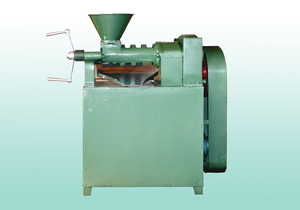

6YL-68A Oil Press YZS-68A Mini Oil Press

YZS-68A mini oil press is matched with gearbox for saving power and not any noise when working .

  • Capacity: 50kg/h for oilseeds
  • Power: 4-5.5Kw/240v/single phase
  • Size: 930 * 575* 1055

If you are interested in our mini oil press, please contact us in the following from, we are always at your service!

Manufacturer and exporter of small / mini oil press. Simple design, easy to operate and low maintenance. We can supply 10-300 ton/day oil press and small oil expeller.
